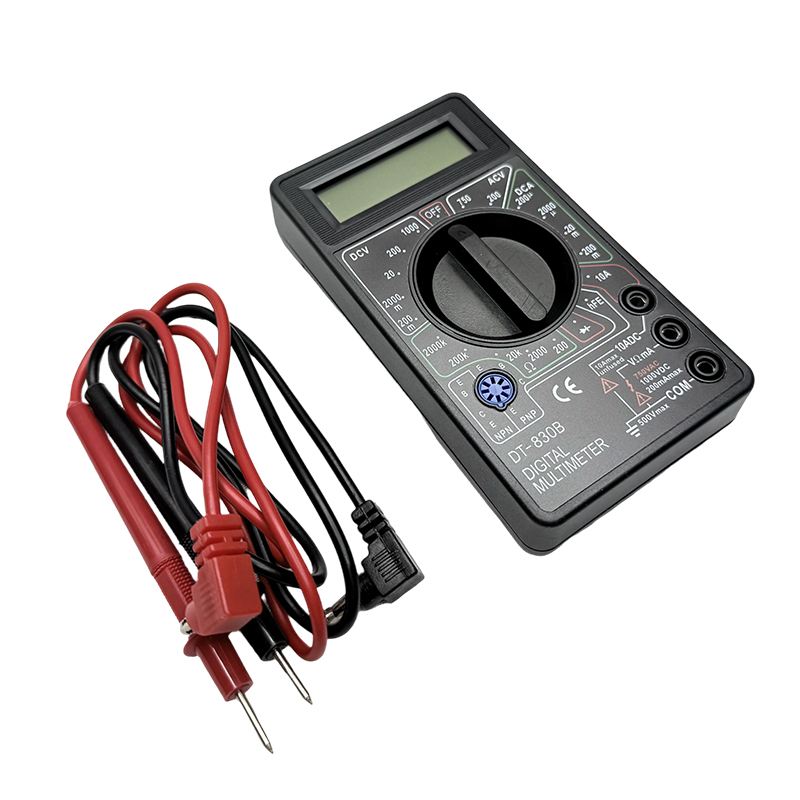

Teaching instruments physical electrical circuit experiment equipment Digital multimeter hand-held（digital display universal meter）electrical instrumentation

Model:

X0027

Application area:

Suitable for students' physics and electricity experiments

Important parameters:

Size: 130*105*30mm

Weight: 123g

Material: Metal + Plastic

Accessories: Wire

Function:

1. Ambient temperature during operation: 0°C-40°C, relative humidity ≤85%

2. Measuring range:

DC voltage: 0-200 ± 0.25%-2-20-200-750V ± 0.5%

ACV: 0-200V-600V: ± 1.2%

DC current: 0-200U-2m-20m ± 1.0%, 200mA: ± 1.2%, 10A: ± 2.0% fuse.

R 0-200-2k-20k-200k ± 0.8%-2Mohm ± 1.0%

3. Display: 3 1/2 digit LCD

Purpose:

A multimeter is an electrical measuring instrument with a wide range of measurement functions. It can measure voltage, current, resistance and other physical quantities. In junior high school physics experiments, multimeters are widely used. For example, in experiments such as measuring battery voltage, studying circuit current, and determining resistance values, multimeters are indispensable tools. Digital multimeters are widely used in physics experiments because of their versatility, high precision and easy reading. It can not only perform basic voltage, current and resistance measurements, but also capacitance, diode tests and temperature measurements to meet the various experimental needs of students during experiments.
