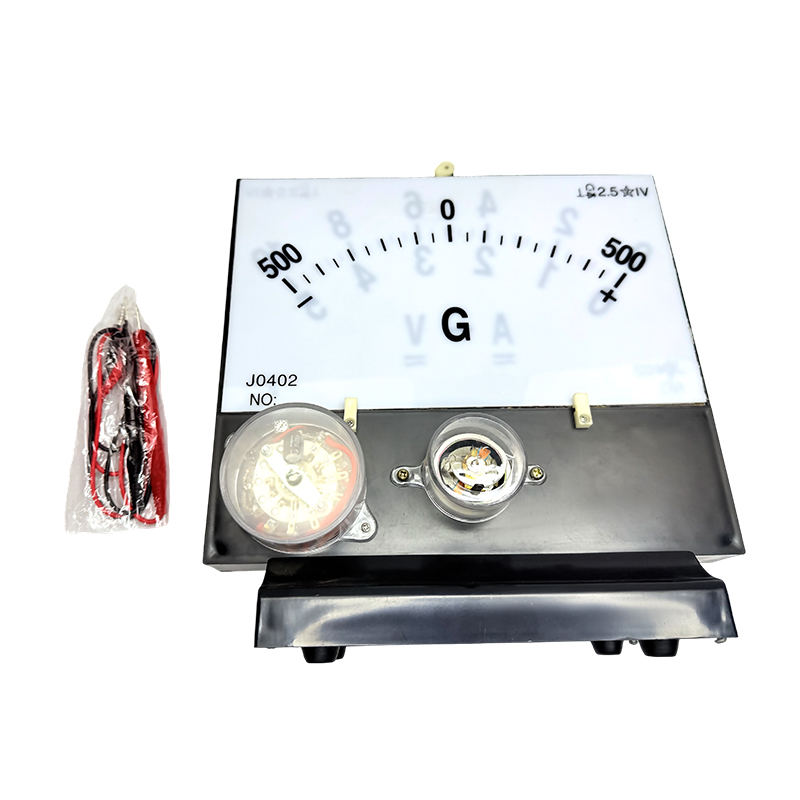

Teaching instruments physical electrical circuit experiment equipment ampere-voltage meter
Home / Product / Physics / Teaching instruments physical electrical circuit experiment equipment ampere-voltage meter
Product Overview

Model:

X0019

Application area:

Suitable for students' physics and electricity experiments

Important parameters:

Size: 345*315*145mm

Weight: 125g

Material: Metal + Plastic

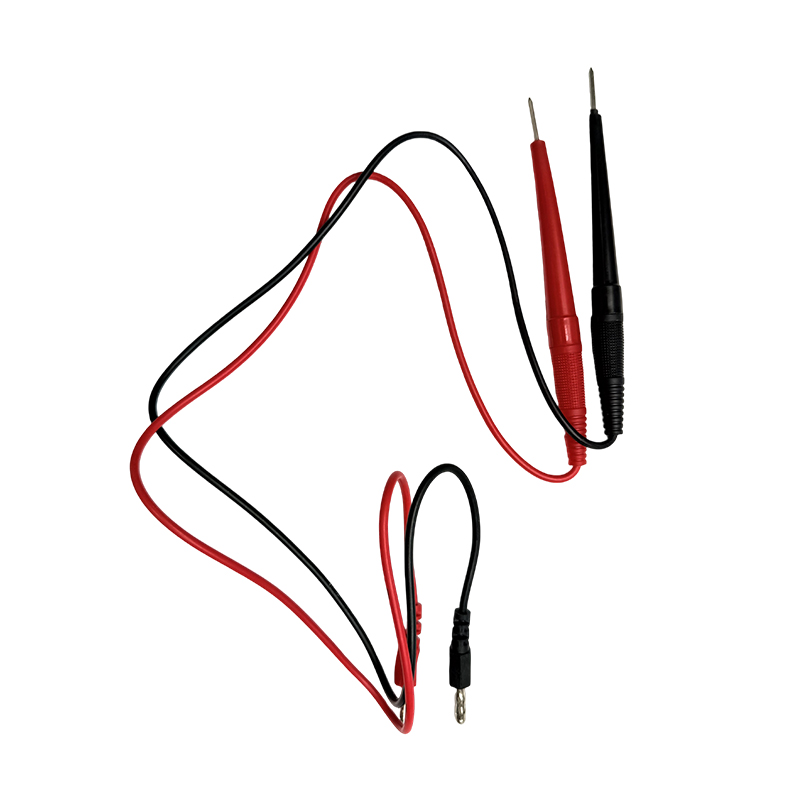

Accessories: Wire

Function:

Measuring range: DC A (G): -50μA-0 +50μA 30-100μA;

DC B: 0-1-2.5-5-10-25-5-100-150-250V.

Ohm:

R×1 ohm: 1 ohm to 100 ohm (median: 10 ohm).

R×10 ohm: 10 ohm-1 kOhm (average: 100 ohm).

R×100 ohm: 100 ohm-10 kOhm (average: 1 kOhm).

R×1kΩ: 1kΩ to 100kΩ

Measuring range: 5 kOhm/V.

Main deviation: DC A, DC B ±2.5% DC

Arc measurement range: ±2.5%

Purpose:

The main function of the ohmmeter is to measure the resistance value. The working principle of the ohmmeter is based on Ohm's law, which is the relationship between current, voltage and resistance. The ohmmeter applies a certain current or voltage to the resistor to be measured, and then measures the voltage or current at the other end to calculate the resistance value.
