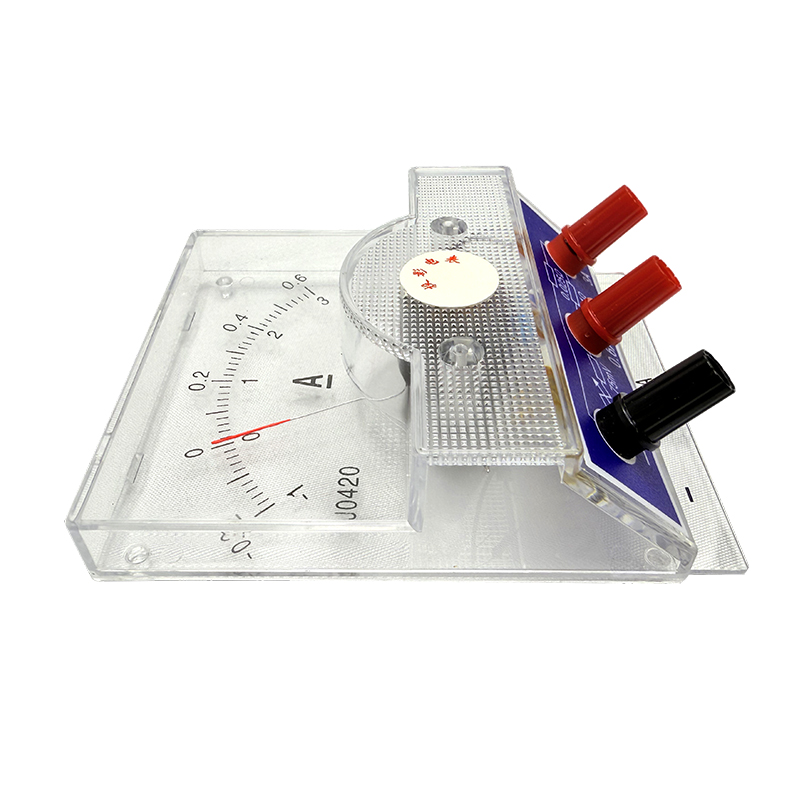

Teaching instruments physical electrical circuit experiment equipment projection ammeter

Detail drawing
  • Teaching instruments physical electrical circuit experiment equipment projection ammeter
  • Teaching instruments physical electrical circuit experiment equipment projection ammeter
  • Teaching instruments physical electrical circuit experiment equipment projection ammeter
  • Teaching instruments physical electrical circuit experiment equipment projection ammeter
Contact us
PREV：Teaching instruments physical electrical circuit experiment equipment projection galvanometerNEXT：Teaching instruments physical electrical circuit experiment equipment projection voltmeter
Product Overview

Model:

X0005

Application area:

Suitable for students' physics and electricity experiments

Important parameters:

Size: 150*130*70mm

Weight: 127g

Material: metal + plastic

Accessories: wire

Function:

1. The indicator panel is parallel to the horizontal plane

2. The ambient temperature during operation is 0°C-40°C, and the relative humidity is ≤85%

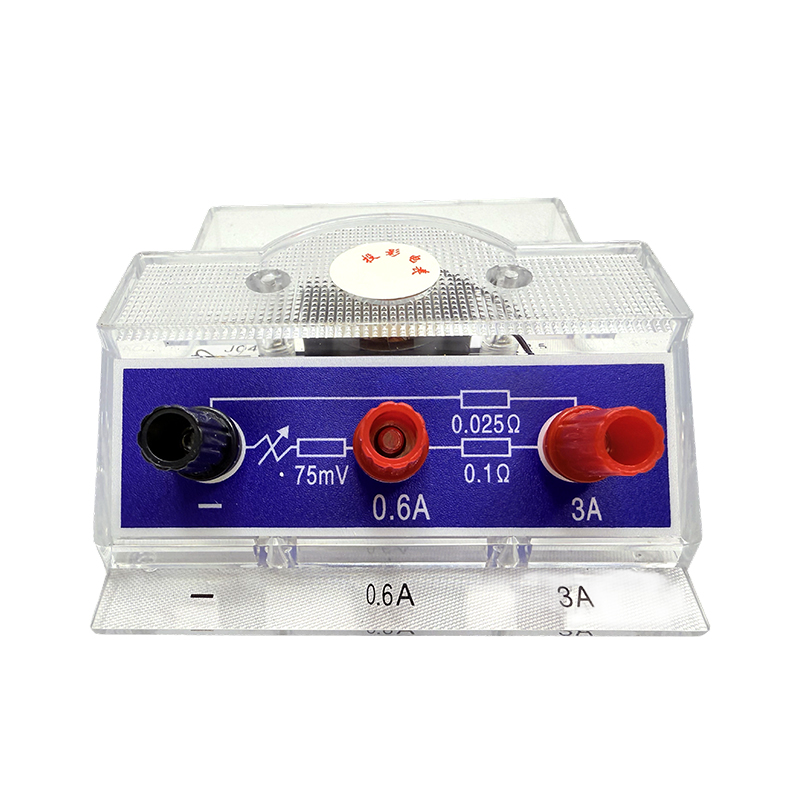

3. Measuring range: (-0.2-0-0.6A), (-1-0-3A)

4. Measuring accuracy: 2.5 levels

5. Damping time: no more than 4 seconds

6. Pointer length: 50mm

7. The minimum division value is 0.02A, 0.1A

Purpose:

It is mainly composed of a case and a head, with high sensitivity and good transparency. It is used in ordinary middle schools to measure the current in DC circuits when using projectors for teaching demonstrations and experiments. It can also be used with ordinary ammeters.
