Teaching instruments physical electrical circuit experiment equipment projection galvanometer

1. Accuracy class: 2.5 (the 2.5 marked at the lower right of the picture means a full-scale error of ≤2.5%).

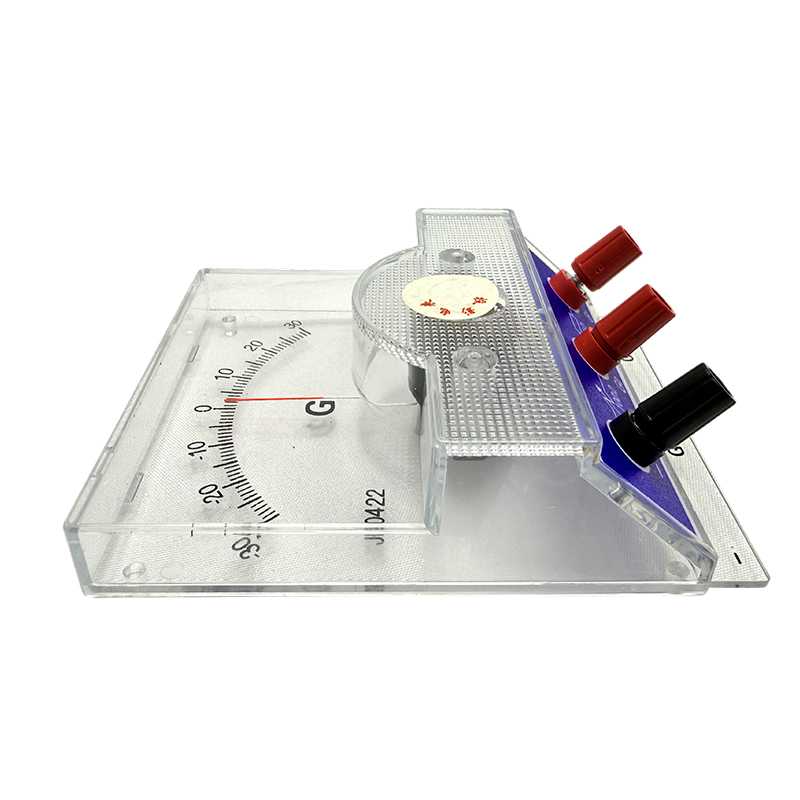

2. Scale range: ±30 divisions, full-scale deflection current ±300 μA (0.3 mA), able to detect tiny DC currents; the pointer can deflect in both directions, and different current directions make the pointer deflect to different sides.

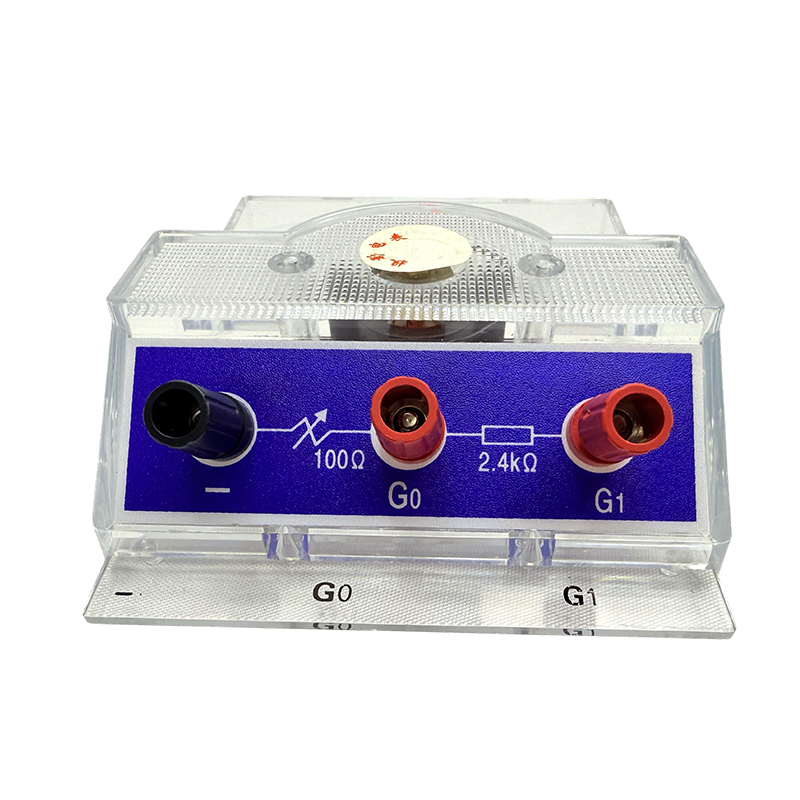

3. Two range terminals
- G0 range: internal resistance about 100 Ω, higher sensitivity;
- G1 range: a built-in 2.4 kΩ resistor in series, total internal resistance about 2400 Ω, lower sensitivity and greater damping, so the pointer settles faster, suiting different experiment needs.

Detail drawing
  • Teaching instruments physical electrical circuit experiment equipment projection galvanometer
  • Teaching instruments physical electrical circuit experiment equipment projection galvanometer
  • Teaching instruments physical electrical circuit experiment equipment projection galvanometer
  • Teaching instruments physical electrical circuit experiment equipment projection galvanometer
Contact us
Product Overview

Model:

X0006

Application area:

Suitable for students' physics and electricity experiments

Important parameters:

Size: 150*130*70mm

Weight: 127g

Material: metal + plastic

Accessories: wire

Function:

1. The indicator panel is parallel to the horizontal plane

2. The ambient temperature during operation is 0°C-40°C, and the relative humidity is ≤85%

3. Measuring range: (0.1mA-0+0.1mA, -1mA+1mA)

4. Deviation: 5%

5. Pointer length: 50mm

Purpose:

 It is mainly composed of a case and a head, with high sensitivity and good transparency. Projection galvanometers are used in ordinary middle schools and technical secondary schools. When using projectors for teaching demonstrations and experiments, they measure small currents and small potential differences in DC circuits, such as galvanometers in experiments such as Wheatstone bridges, thermocouples, electromagnetic induction, and photoelectric effects, and for expanding the range of ammeters, etc.

Uses (middle school physics electricity experiments)
It is mainly not for precise readings, but more for judging whether a tiny current is present and its direction:
1. Electromagnetic induction experiments (conductor cutting magnetic field lines, Lenz's law; detecting weak induced current and determining the direction of induced current).
2. Wheatstone bridge experiment: used as a null indicator to judge whether the bridge is balanced (at balance, the current is 0 and the pointer reads 0)
3. Demonstration of weak electrical signals such as thermocouples and the photoelectric effect.
4. Meter modification experiments: used to convert it into a large-range ammeter or voltmeter, and to determine the meter movement parameters (internal resistance, full-scale deflection current).
5. Demonstrate potential difference in circuits and the flow of weak charge.
