Chemistry teaching model classroom demonstration models ironmaking blast furnace model

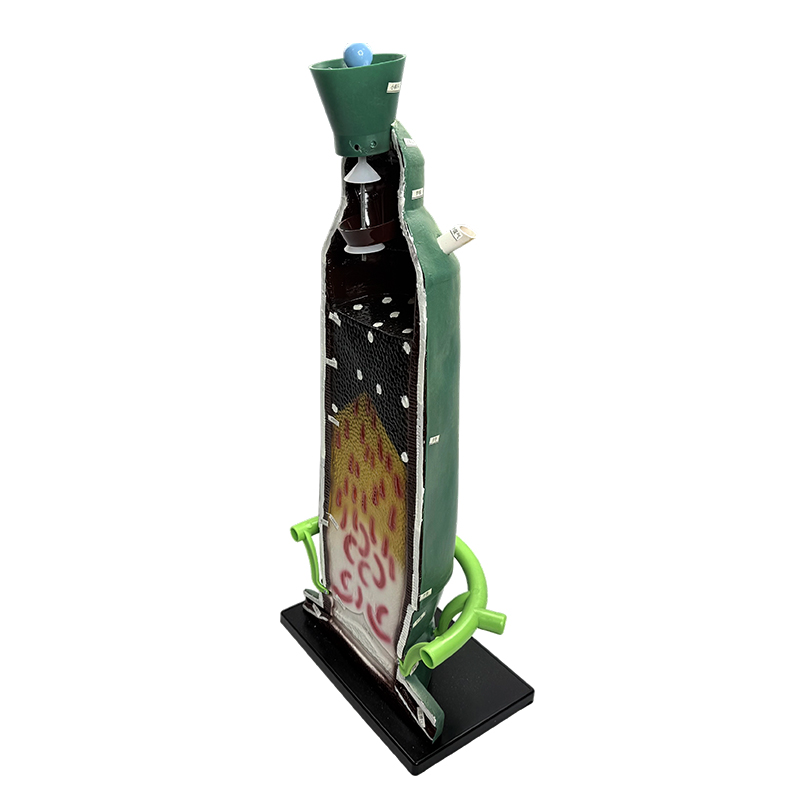

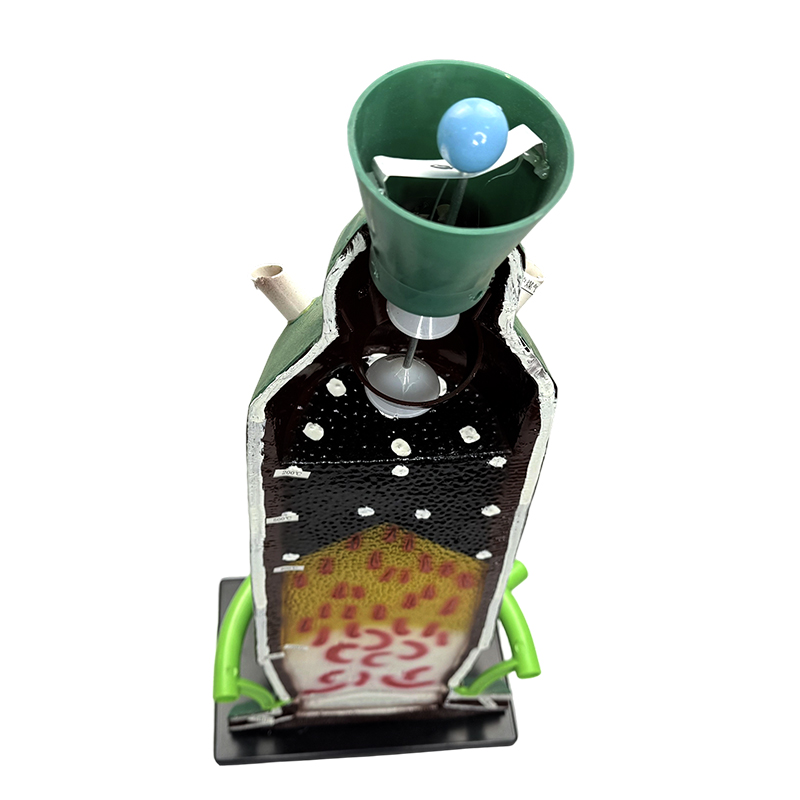

Structural zones (from top to bottom)
- Furnace throat: loading port at the top (green hopper, simulating the charging bell, into which iron ore, coke, and limestone are fed)
- Furnace shaft: reduction zone, showing the area where carbon monoxide reduces iron oxide
- Furnace bosh: coke combustion zone (painted flames, simulating high temperature)
- Furnace hearth: at the bottom, simulating where molten iron and slag collect

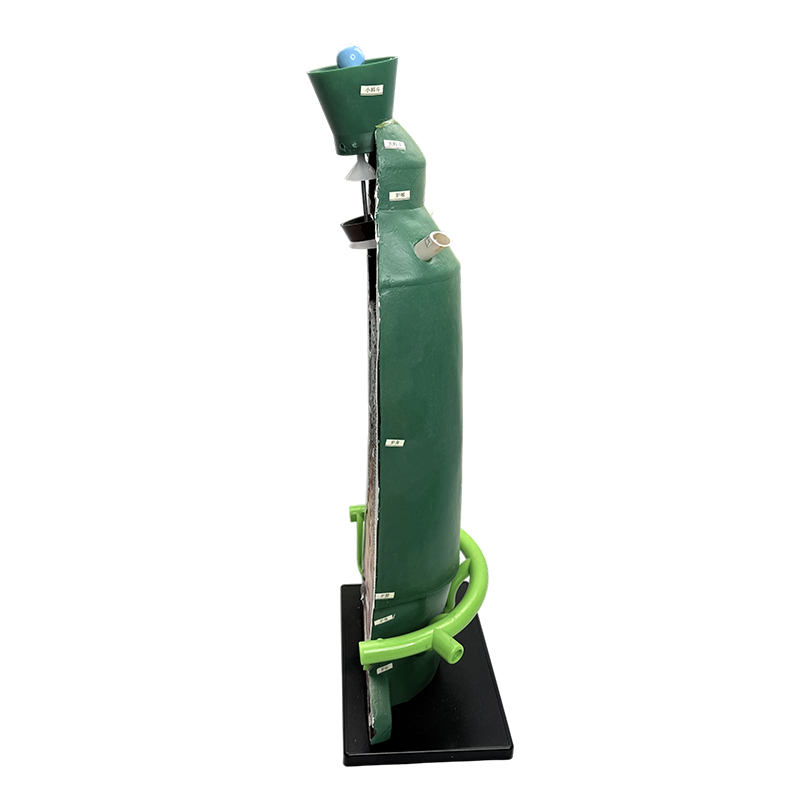

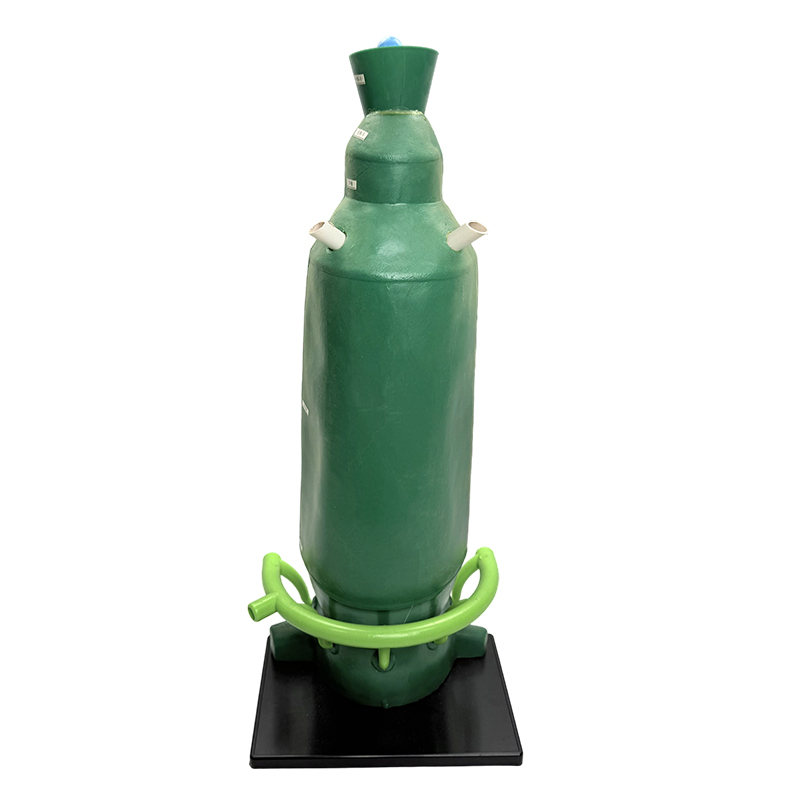

- Green pipes on both sides: hot blast inlets (air intake, into which preheated air is fed)

Detail drawing
  • Chemistry teaching model classroom demonstration models ironmaking blast furnace model
  • Chemistry teaching model classroom demonstration models ironmaking blast furnace model
  • Chemistry teaching model classroom demonstration models ironmaking blast furnace model
  • Chemistry teaching model classroom demonstration models ironmaking blast furnace model
  • Chemistry teaching model classroom demonstration models ironmaking blast furnace model
  • Chemistry teaching model classroom demonstration models ironmaking blast furnace model
Contact us
Product Overview

Model:

X0624

Application area:

Junior high school chemistry experimental equipment

Important parameters:

Size: 300*215*655mm

Weight: 1700g

Material: plastic

Specifications:

It consists of five parts: throat, body, waist, belly and hearth

Function:

Blast furnace model is the main equipment for ironmaking

Use:

The ironmaking blast furnace model shows all aspects of blast furnace ironmaking in an intuitive and vivid way, including raw material preparation, blast furnace operation, smelting process, etc.

Teaching Uses
1. Show the overall structure of an industrial ironmaking blast furnace and recognize structures such as the furnace throat, shaft, bosh, hearth, air inlets, and charging port.

2. Explain the raw materials for ironmaking: iron ore, coke, limestone, hot air.

3. Explain the three layers of reactions inside the blast furnace:
- Bottom: coke burns and releases heat (C + O2=CO2)
- Middle: carbon dioxide and carbon produce the reducing agent carbon monoxide (CO2 + C=2CO)
- Upper: carbon monoxide reduces iron oxide to give pig iron (3CO + Fe2O3=2Fe + 3CO2)

4. Distinguish the products: pig iron (liquid molten iron) and slag; also explain the blast furnace exhaust gas (contains CO, which is toxic and must be treated).

5. Helps understand: the countercurrent principle (raw materials move from top to bottom, hot air from bottom to top, making full contact and reacting).

Usage Points
- It is a static demonstration model: it cannot be ignited and no real gas can be fed into it; it is only used for classroom explanation and for reading diagrams.
- The top hopper simulates the bell-valve charging device, explaining why a blast furnace must be sealed when charged, to prevent gas leakage.
- The air pipes on both sides are hot blast pipes, used to explain "preheating the air saves fuel and raises the furnace temperature".
