Primary school milliammeter DC current:-5mA-0-5mA / -50mA-0-50mA
Home / Product / Physics teaching instruments / Primary school milliammeter DC current:-5mA-0-5mA / -50mA-0-50mA

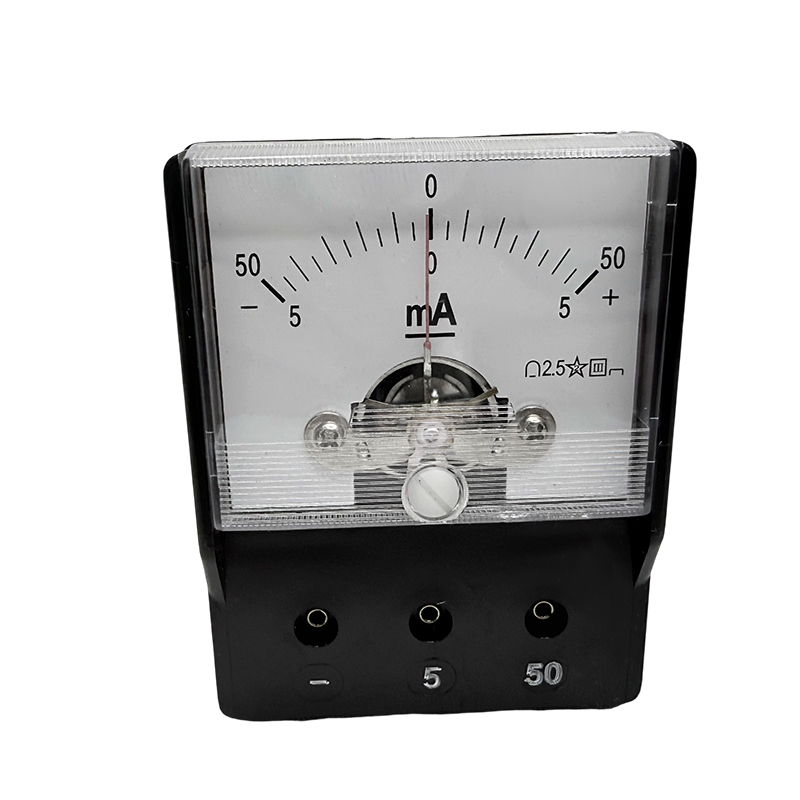

Primary school milliammeter DC current:-5mA-0-5mA / -50mA-0-50mA

Detail drawing
  • Primary school milliammeter DC current:-5mA-0-5mA / -50mA-0-50mA
  • Primary school milliammeter DC current:-5mA-0-5mA / -50mA-0-50mA
  • Primary school milliammeter DC current:-5mA-0-5mA / -50mA-0-50mA
  • Primary school milliammeter DC current:-5mA-0-5mA / -50mA-0-50mA
Contact us
PREV：Teaching instruments physical electrical circuit experiment equipment projection voltmeterNEXT：Teaching instruments physical electrical circuit experiment equipment voltmeter for students
Product Overview

Model:

X0003

Application area:

Suitable for students' physics and electricity experiments

Important parameters:

Size: 80*80*30mm

Weight: 76g

Material: metal + plastic

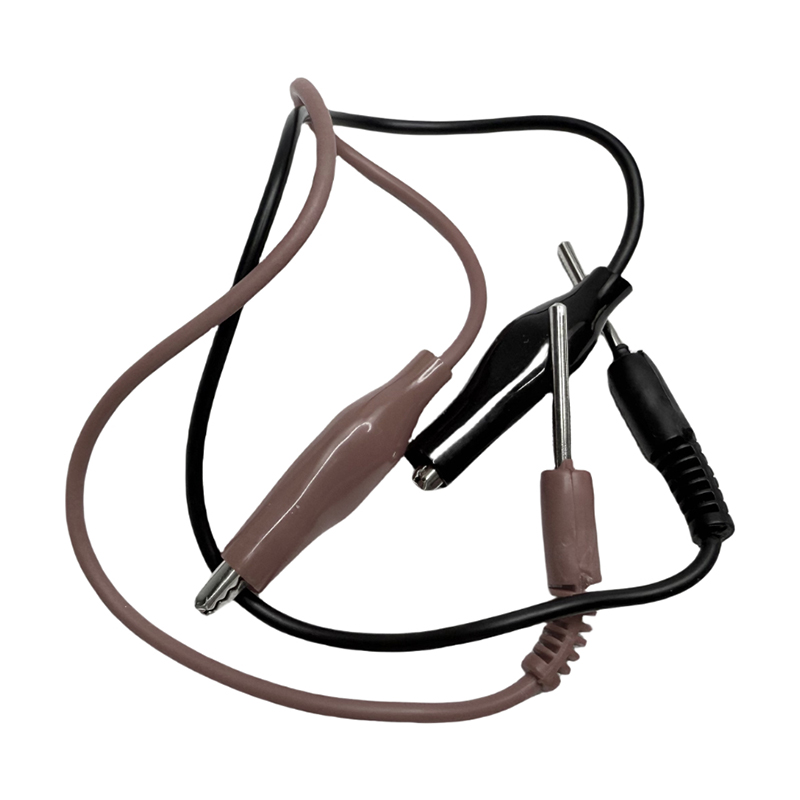

Accessories: wire

Function:

1. The indicator panel is at a 45° angle to the horizontal plane

2. The ambient temperature during working time is 0℃-40℃, and the relative humidity is ≤85%

3. Measuring range: (5 mA / 50 mA)

4. Measuring accuracy: Class 2.5

Purpose:

External zero adjustment, overload protection. The accuracy is ±2.5% of the full scale.

Measuring range:

5 mA / 50 mA. ‌Milliammeter is mainly used to measure current. ‌ It is a type of ammeter, which uses milliamperes (mA) to indicate the current size. Milliammeters are usually used to measure DC current. Their range is generally smaller than that of ordinary ammeters, and they are often used to replace sensitive ammeters. It is suitable for middle schools to measure DC current in DC circuits when conducting experiments or student experiments.
