Teaching instrument physics pointer style ampere force demonstrate apparatus magnetic field and electric current

A classic high school physics electromagnetism teaching apparatus, used to demonstrate the Ampere force on a current-carrying wire in a magnetic field, the left-hand rule, and how the magnitude of the Ampere force relates to current and magnetic field.

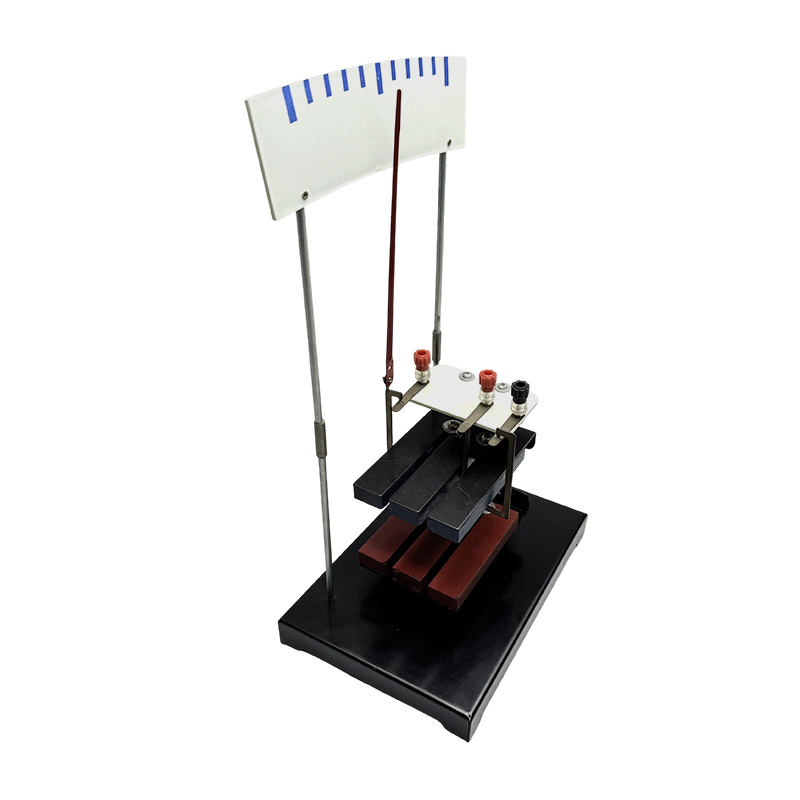

Detail drawing
  • Teaching instrument physics pointer style ampere force demonstrate apparatus magnetic field and electric current
  • Teaching instrument physics pointer style ampere force demonstrate apparatus magnetic field and electric current
  • Teaching instrument physics pointer style ampere force demonstrate apparatus magnetic field and electric current
Contact us
Product Overview

Model:

X0066

Application area:

High school physics current action teaching instrument teaching aids experimental equipment

Important parameters:

Size: 190*130*320mm

Weight: 110g

Material: metal + plastic + magnet

Structure:

Dial, pointer, terminal, wire frame, magnetic pole and base

Function:

Pointer type, demonstrates the force of magnetic field on the current conductor.

Use:

This instrument is used for middle school physics teaching to demonstrate the direction of Ampere force and the relationship between the magnitude of Ampere force (F) and the current intensity (I), the length of the current conductor (L), and the magnetic induction intensity (B). That is, F=IBL

Standard Parameters

1. Power requirement: DC power supply, DC 3 V–6 V recommended

2. Magnetic field system: multiple permanent magnets; the number of magnets can be increased or decreased to change the magnetic flux density B

3. Conductive part: replaceable straight conductor rod (copper), with adjustable effective conductor length

4. Reading mechanism: pointer + curved scale; the deflection angle directly reflects the magnitude of the Ampere force

5. Terminals: 4 mm standard banana-plug terminals, compatible with teaching experiment wires

6. Base: heavy metal base with baked-enamel finish, with stable counterweight so it does not tip over easily during experiments

7. Experimental variable control (core function)

  • Change the current (connect a sliding rheostat in series) → Ampere force changes, pointer deflection angle changes
  • Change the magnetic field strength (add or remove permanent magnets) → Ampere force changes
  • Swap the power supply polarity → current reverses, force direction reverses
  • Swap the magnet N/S poles → magnetic field reverses, force direction reverses

8. Experiment principle: verification of the Ampere force formula (F=BIL) and demonstration of the left-hand rule


Teaching Uses

- Demonstrate that a current-carrying conductor experiences an Ampere force in a magnetic field

- Verify the relationship between the direction of the Ampere force, the current direction, and the magnetic field direction (left-hand rule)

- Qualitative investigation: the proportional relationship between the Ampere force and the magnetic flux density B, current I, and wire length L
