Optical concave convex prism lens set/physical optical kit lab equipment

Main Parameters
- Material: optical acrylic (plexiglass), with good light transmission and not easily broken, commonly used in teaching models; optical glass versions are also available
- Thickness: about 10 mm, suitable for line light source incidence, with a clearly visible light path
- Prism: apex angle 60°
- Semi-cylinder: diameter about 50 mm, specifically used to measure the critical angle and demonstrate total internal reflection
- Lens specifications: biconvex and plano-convex are converging lenses; biconcave is a diverging lens; focal lengths are suited to middle school optics demonstrations

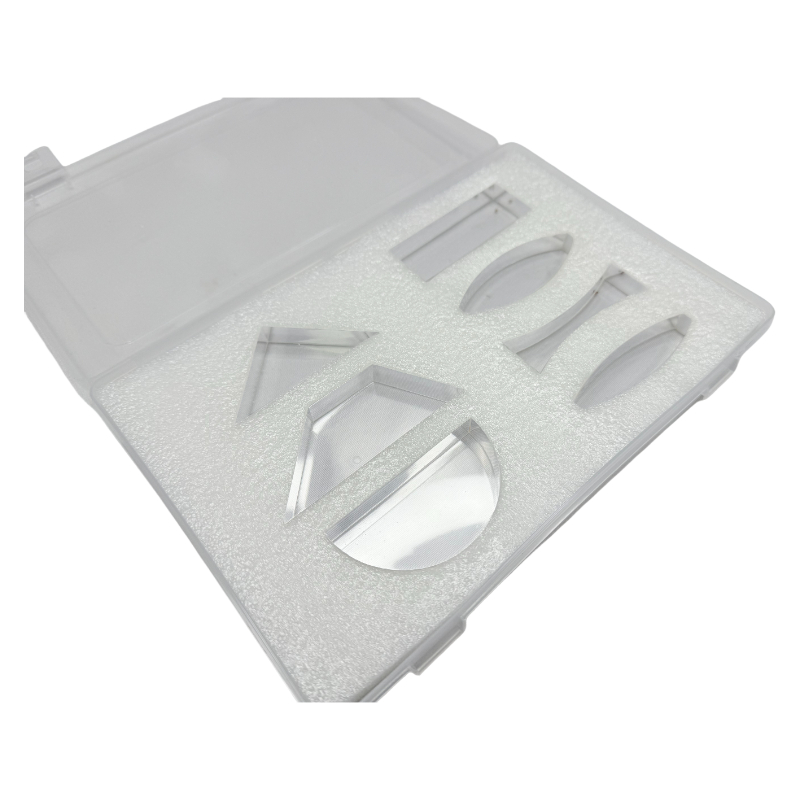

- Storage: hard plastic box + pearl cotton positioning, convenient for storage and carrying

Detail drawing
  • Optical concave convex prism lens set/physical optical kit lab equipment
  • Optical concave convex prism lens set/physical optical kit lab equipment
  • Optical concave convex prism lens set/physical optical kit lab equipment
Contact us
Product Overview

Model:

X0504

Application area:

Physical optics experimental equipment for junior and senior high schools

Important parameters:

Size: 240*160*32mm

Weight: 359g

Material: plastic

Composition:

7-piece set, including rectangle, trapezoid, semicircle, etc.

Function:

Students use it to demonstrate the reflection and refraction law of light.

Use:

For physical optics experiments, can be used with beam splitter and three-line light source.

Function of Each Component
1. Equilateral prism: demonstrates white light dispersion, splitting it into seven colors; demonstrates the deflection of light after two refractions through a prism.
2. Trapezoidal prism: demonstrates two refractions of light and lateral displacement of the ray, for comparison with the parallel glass block.
3. Semi-cylindrical glass block: key experiment — total internal reflection of light; the ray enters along the radius to the flat surface, and as the angle of incidence is changed, students observe the refracted light disappearing and total internal reflection occurring, then measure the critical angle.
4. Parallel glass block: demonstrates refraction of light through parallel interfaces; the outgoing ray is parallel to the incident ray, only shifted laterally, without changing the direction of propagation.
5. Biconvex lens: demonstrates the convergence of light and the converging effect of a convex lens on light, for understanding focal point and focal length, and the principles of cameras and magnifying glasses.
6. Biconcave lens: demonstrates the divergence of light and the diverging effect of a concave lens on light, and the principle of myopia lenses
7. Plano-convex lens: converges on one surface only; compare it with the biconvex lens to learn the differences in light paths of lenses with different curved surfaces.

List of Possible Experiments
- Investigating the laws of refraction of light
- Total internal reflection experiment
- White light dispersion experiment
- Demonstration of light paths for convex lens convergence and concave lens divergence
- Comparison of the light paths of parallel light through different optical elements
- Verifying the reversibility of light paths in lenses and prisms
