Light barrier panel set (4 pieces)

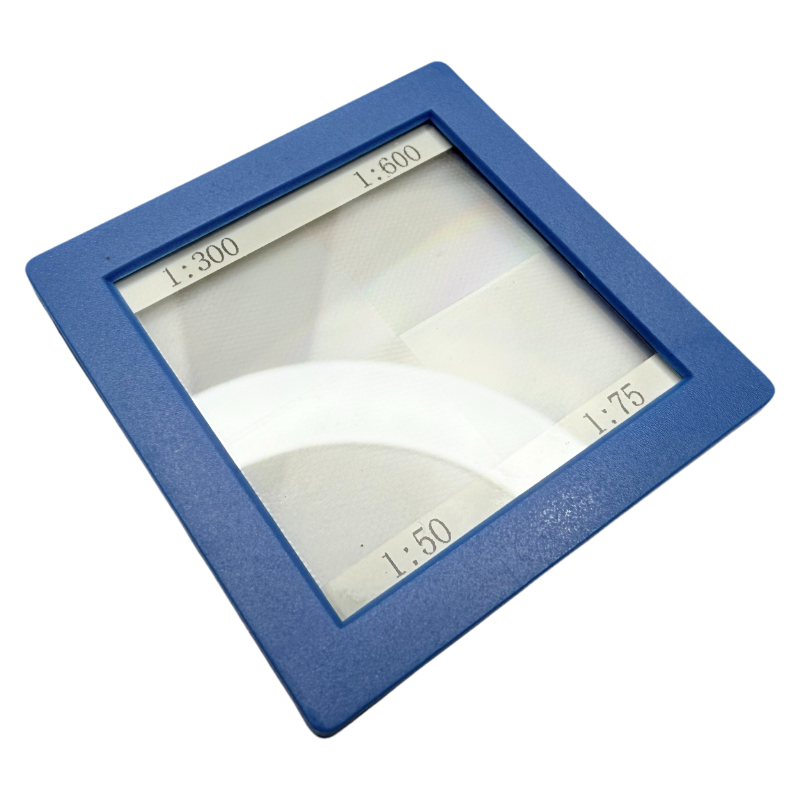

The labels 1:50, 1:75, 1:300, and 1:600 mean 50 lines, 75 lines, 300 lines, and 600 lines per millimeter respectively.

Detail drawing
  • Light barrier panel set (4 pieces)
  • Light barrier panel set (4 pieces)
  • Light barrier panel set (4 pieces)
Contact us
Product Overview

Model:

X0505

Application area:

Junior high school physics optics experimental equipment

Important parameters:

Size: 55*55*5mm

Weight: 20g

Material: plastic + glass

Composition:

7-piece set, including rectangle, trapezoid, semicircle, etc.

Function:

Frame of diffraction grating, used for light diffraction experiment.

Use:

Light diffraction experimental device, used for optical demonstration.

Grade Line density Grating constant d (spacing between adjacent slits)
1:50 50 lines/mm 0.020 mm
1:75 75 lines/mm 0.0133 mm
1:300 300 lines/mm 0.0033 mm
1:600 600 lines/mm 0.0017 mm

Features

Few lines, wide slits; diffraction fringes are sparse, suitable for first-time observation


Medium density

Obvious dispersion, good spectral separation

Densest lines, greatest dispersion, widest spread spectrum, suitable for measuring light wavelengths

- Base material: PET holographic transmission grating film, protected by clips, blue plastic frame

- Shape: square frame, with a rectangular effective light-transmitting area

- Compatible light sources: laser pointer, sodium lamp, mercury lamp, white light source


Teaching Functions

  • Demonstrate light diffraction and interference, proving that light has wave properties
  • White light dispersion experiment: white light is incident and splits into a continuous colored spectrum, for comparison with prism dispersion
  • Measure the wavelength of monochromatic light (laser, sodium yellow light), a must-know high school optics experiment
  • Comparison experiment: by swapping gratings with different line counts, students can directly see that the denser the lines (600 lines), the larger the diffraction deflection angle and the wider the spectrum spreads
  • Observe line spectra: observe the characteristic spectral lines of gas discharge tubes (atomic spectra)
