Physic experiment kit teaching instrument the coil physical electromagnetic induction solenoid experiment equipment

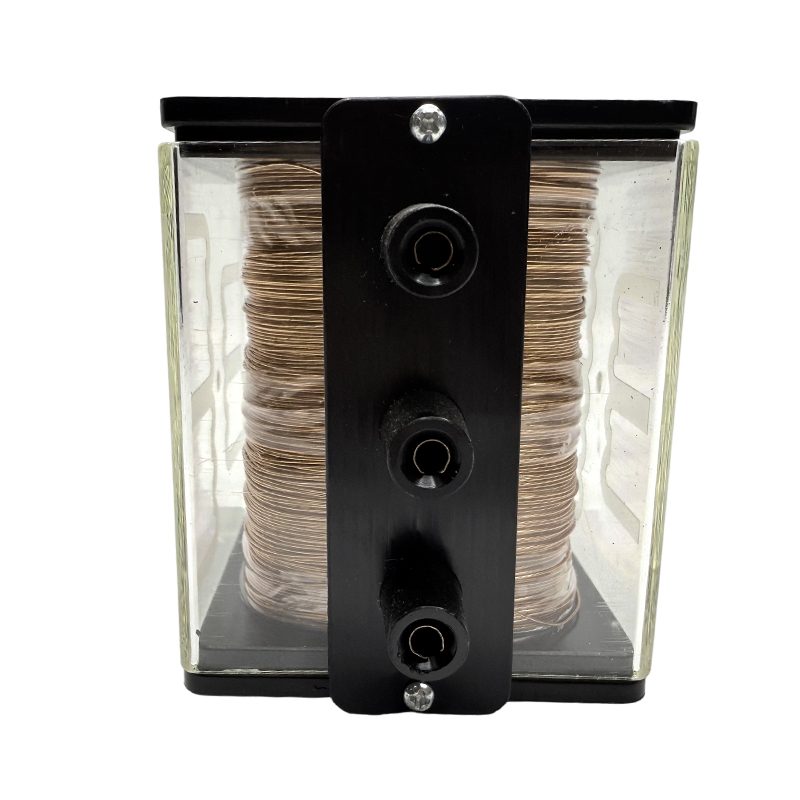

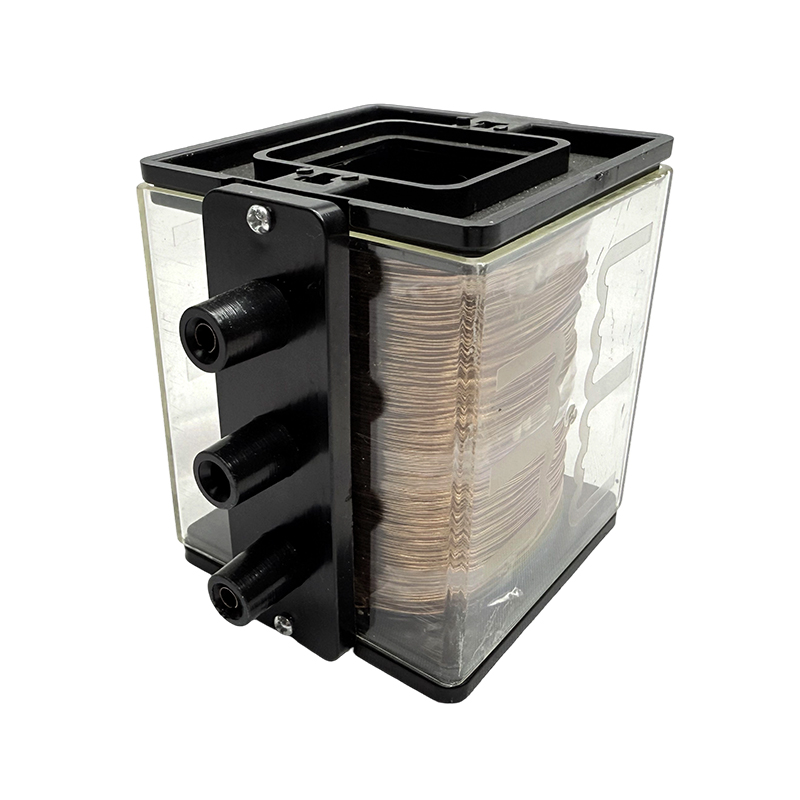

All-in-one transparent boxed version. The three terminals represent the tapped secondary winding, used for experiments on mutual inductance, electromagnetic induction, Lenz's law, and transformer principles.

Detail drawing
  • Physic experiment kit teaching instrument the coil physical electromagnetic induction solenoid experiment equipment
  • Physic experiment kit teaching instrument the coil physical electromagnetic induction solenoid experiment equipment
  • Physic experiment kit teaching instrument the coil physical electromagnetic induction solenoid experiment equipment
  • Physic experiment kit teaching instrument the coil physical electromagnetic induction solenoid experiment equipment
  • Physic experiment kit teaching instrument the coil physical electromagnetic induction solenoid experiment equipment
Contact us
Product Overview

Model:

X0063

Application area:

Physical electromagnetic teaching instruments and experimental equipment

Important parameters:

Size: 120*80*95mm

Weight: 812g

Material: Metal + Plastic

Specifications:

Resistance is 10 ohms

Function:

The choke is designed for laboratory research on magnetic fields and current phenomena of electromagnetic induction. It is a winding on a rigid lightweight frame. It allows the use of permanent magnets and milliamps for laboratory work to study magnetic fields, the performance of electromagnetic currents, the functions and interactions of direct current with magnets.

Use:

A coil is a closed loop wound by a wire, usually used to generate or detect a magnetic field. The application of coils as a physical principle in electromagnetic induction, electromagnetic energy transmission and electromagnetic wave generation is extensive. By changing the coil, the way current, voltage and energy transmission can be changed.

1. Primary coil

  • Turns: 200
  • Enameled wire diameter: ≈0.44 mm (thick wire, allows a larger input current)

2. Secondary coil (3 tap terminals)

  • Total turns: 800, with a center tap, giving two output taps: 400 turns and 800 turns (this is why there are 3 terminals: common + 400 turns + 800 turns)
  • Enameled wire diameter: ≈0.22 mm

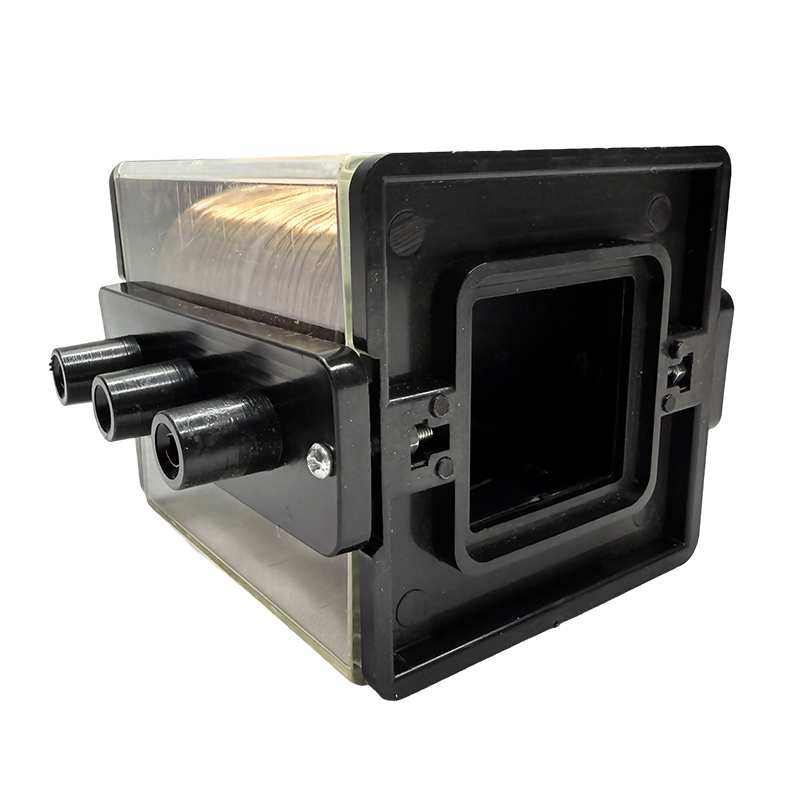

3. Core: matching soft iron rod (silicon-steel soft magnetic core, a separate accessory, inserted from the square opening at the top)

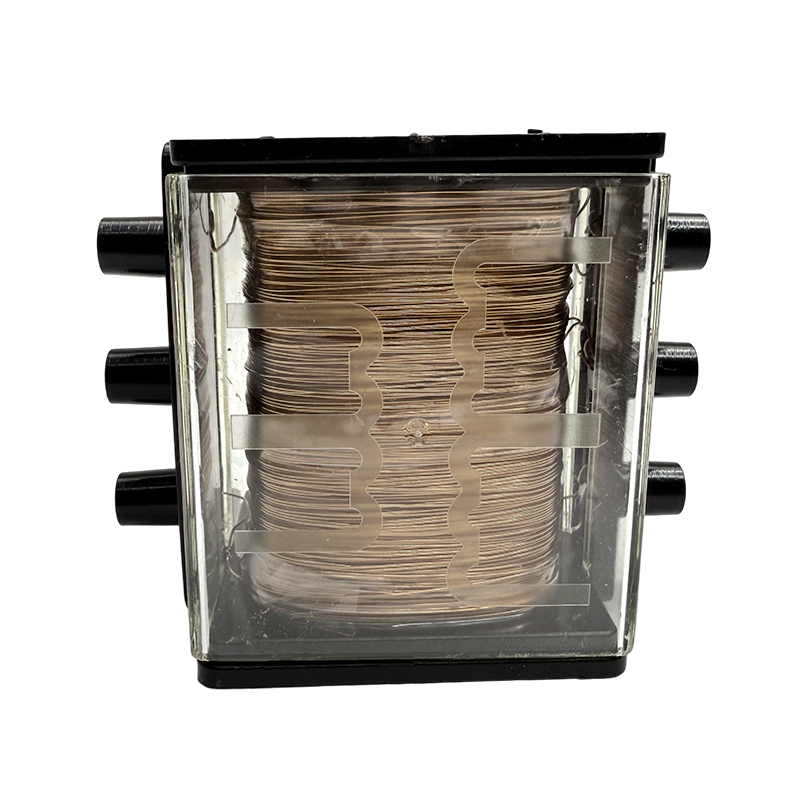

4. Housing: transparent PC/acrylic housing; the layered copper windings inside are directly visible, a big advantage for classroom demonstration

5. Power supply: low-voltage AC student power supply (≤12 V AC), or a 1.5 V dry cell plus a sliding rheostat for make-and-break DC self-inductance and mutual inductance experiments

6. Compatible experiments: mutual induction, Lenz's law, relationship between transformer turns ratio and voltage, Faraday's law of electromagnetic induction
