0-9999Ω Adjustable physical teaching experiment tools resistance box precision teaching instrument variable resistor box
Home / Product / Physics / 0-9999Ω Adjustable physical teaching experiment tools resistance box precision teaching instrument variable resistor box
Product Overview

Model:

X0055

Application area:

Teaching instruments for junior high school electrical physics experiments

Important parameters:

Size: 150*110*85mm

Weight: 300g

Material: metal + plastic

Technical parameters:

1. Accuracy level: Level 1

2. Adjustable resistance range: 0~9999Ω, minimum step value is 1Ω

3. Operating temperature: 0~40℃

4. Relative humidity: 25%~80%

5. Zero resistance: R0<0.035Ω

6. Reference power: 0.5W; Rated power: 1W

7. Insulation resistance between the circuit and the metal part of the shell>50MΩ

Function:

Simple resistance box is used for ordinary middle schools, technical secondary schools, and college students to conduct the following electrical experiments: verify Ohm's law in some circuits; use as additional resistors to expand the range of voltmeters; use to measure unknown resistance; use as a known resistance to connect to the circuit to adjust the required current; use to measure the electromotive force of the power supply or the internal resistance, etc. It is an indispensable instrument in electrical experiments.

Use:

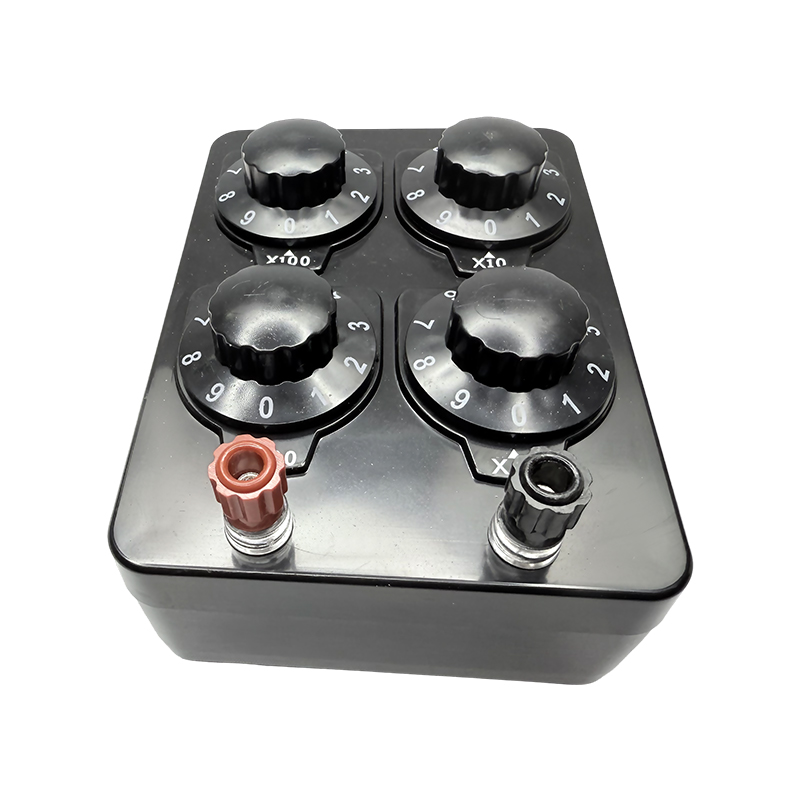

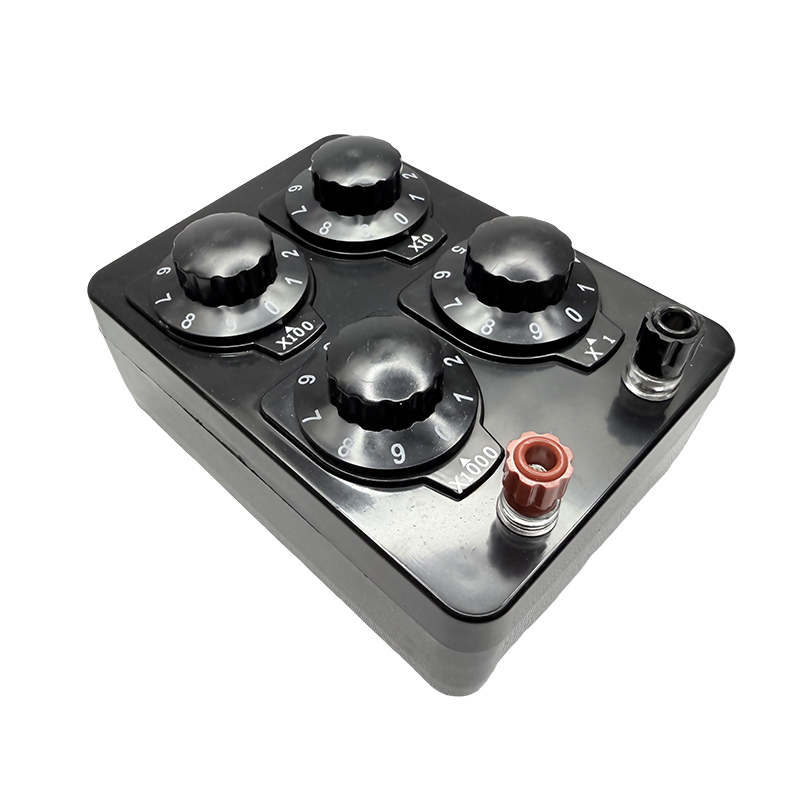

The simple resistance box adopts a bakelite sealed structure. The resistance value is changed in the form of a knob switch, which relies on the brush to rotate to different positions to achieve the purpose of resistance change. The resistance element of this instrument uses high-stability precision alloy manganese copper wire wound on the porcelain skeleton in a non-inductive manner. After strict screening, testing, aging, and impregnation treatment, the resistance value is stable and correct. In short, the resistance box has a wide range of applications in physics teaching. It can not only help students learn and understand the properties of resistance and the working principle of circuits, but also can be used for experimental operations and measurements. It is one of the indispensable instruments in physics laboratories.
