Uses

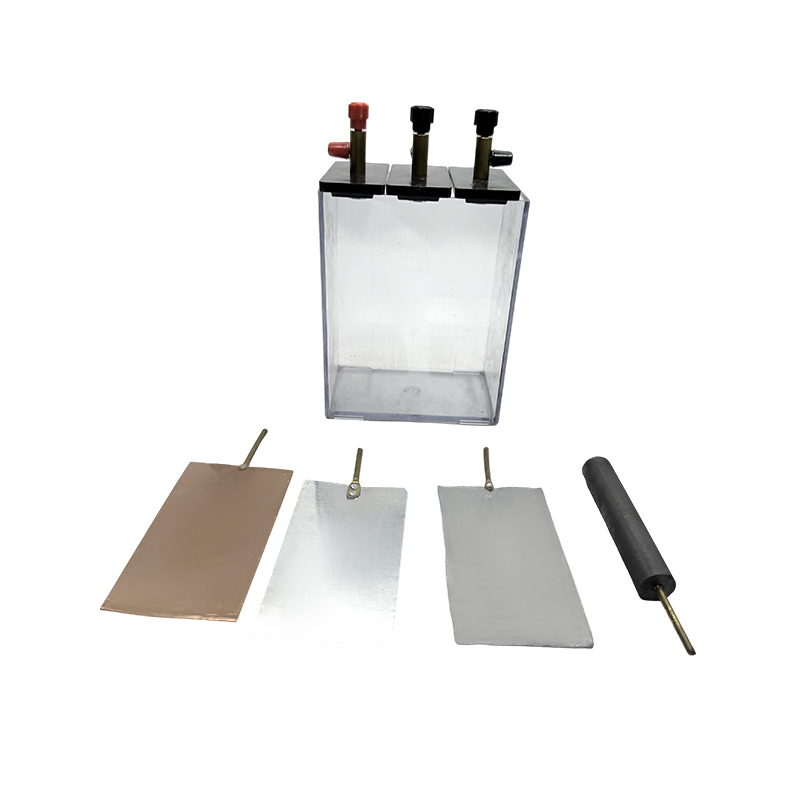

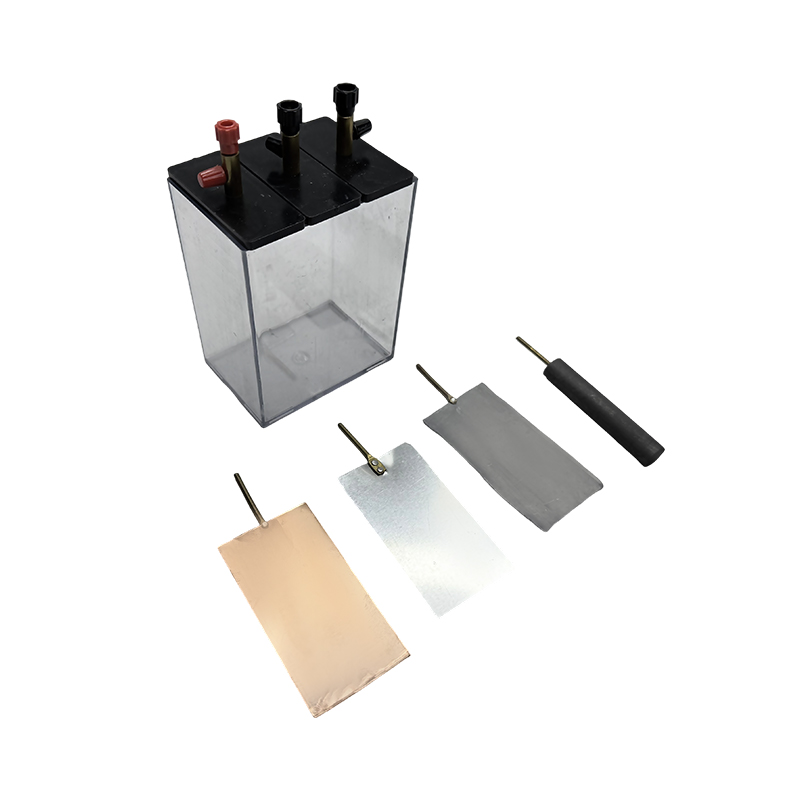

Senior high school chemistry electrochemistry group experiment apparatus, used to investigate the conditions for forming a galvanic cell and the conversion of chemical energy into electrical energy; it can also be used for electrolysis and electroplating experiments:
1. With a sensitive galvanometer and wires, swap in different electrode combinations (zinc-copper, zinc-aluminum, zinc-carbon rod, aluminum-carbon rod, etc.) and compare differences in voltage and current between electrode materials;
2. Verify the conditions for forming a galvanic cell: electrodes of different reactivity, an electrolyte solution, a closed circuit, and a spontaneous redox reaction;
3. Observe electrode phenomena: the negative-electrode metal dissolves, and bubbles form or metal is deposited at the positive electrode;
4. Switch to an external power supply to use it as an electrolytic cell or electroplating device (for example, electrolysis of copper sulfate solution, copper plating);
5. Compare with the Daniell cell with separator mentioned earlier to understand the **drawbacks of the single-solution galvanic cell (self-discharge, large energy loss).
